Color steel plate types and introduction

2024/8/30

Color steel sandwich board is composed of two layers of color coated steel plate as a panel, with thermal insulation materials polystyrene, polyurethane, phenolic foam, rock wool as the core material, in the special automatic production line, through continuous molding process core material and panel composite into a whole building board, commonly known as "sandwich board". Although the history of the introduction of this composite plate in China is less than 20 years, but because of its bearing capacity, thermal insulation, decoration, waterproof, simple construction and a series of advantages, so in the building clean room has been widely recognized and used, the challenge to traditional building materials such as brick and stone, become a new army in the building materials industry.

First, core material type and performance comparison

According to the chemical composition of its products can be divided into two categories, one is organic chemical foam materials, such as polystyrene foam EPS, polyurethane foam PU, extruded polystyrene foam XPS, phenolic foam PF, etc. The other is inorganic fiber materials, such as rock wool board, foam cement board and so on.
1, polyurethane foam color steel sandwich board PU
The polyurethane foam color steel sandwich board is made of flame-retardant rigid polyurethane foam as the core material and colored coated steel plate as the surface material. At present, the domestic metal-faced rigid polyurethane sandwich board is widely used in industrial plants, warehouses, stadiums, residential buildings, villas, movable board houses, combined cold storage and other buildings, but the disadvantage is that it is carried out under the condition of high temperature and strong alkali reaction, high equipment requirements, the initial investment is large, and industrialization is more difficult.
2, polystyrene foam color steel sandwich board EPS
Polystyrene is the white foam we often see, this color steel plate is cheap, water resistance, no deformation, most of the activity rooms on the site are built with polystyrene sandwich board, widely used, but polystyrene foam sandwich board is not fireproof, insulation effect is the worst.
3, phenolic foam color steel sandwich board PF
Phenolic foam color steel sandwich board is a composite board with color steel plate as surface material and phenolic foam as core material. Phenolic foam is brittle, fragile, and has a certain corrosion, the residual acid in the foam will corrode metal materials.
4, rock wool color steel sandwich board
Rock wool color steel sandwich board, fire performance is better, but rock wool color steel plate is not waterproof, toxic substances in case of fire, pollution is larger.
5, paper honeycomb color steel sandwich board
Paper honeycomb sandwich board can be completely recycled waste, is a replacement of polystyrene board, polyurethane, rock wool and other materials, widely used in electronics, hospital operating rooms, laboratories and other clean engineering fields, but the waterproof effect is poor, the price is more expensive.
6, aluminum peak sandwich plate
Aluminum honeycomb color steel sandwich plate, it is made of aluminum honeycomb core plate, using special high-strength glue and color steel plate composite, and supported by special aluminum alloy keel, after heating, pressure, curing and made of. Compared with other sandwich panels, light weight, flatness is good, belongs to green building materials, but the highest cost.

Second, the specific performance indicators of color steel sandwich materials

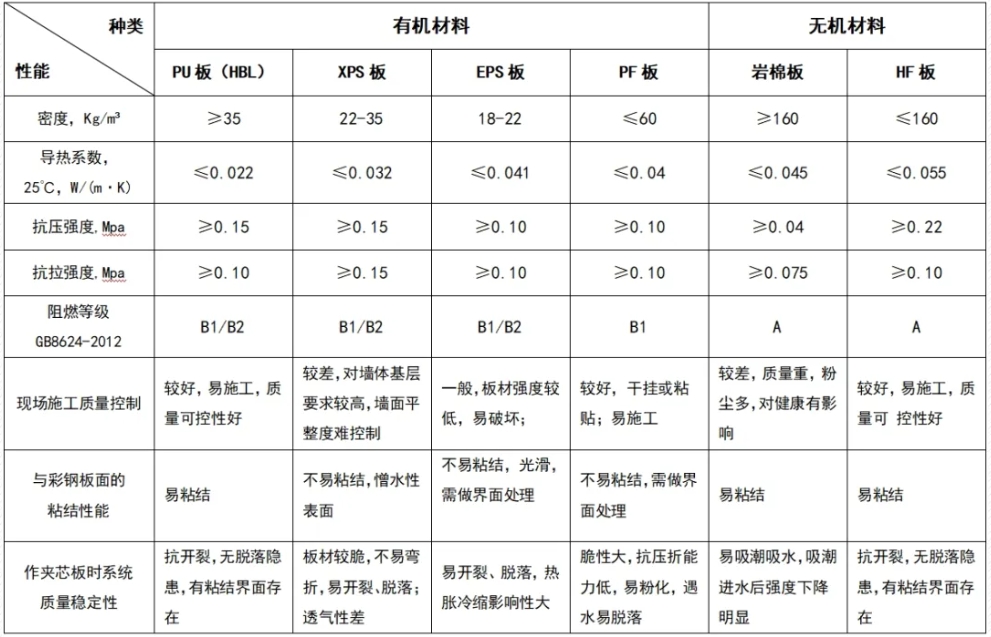

Comparison of thermal insulation materials of common color steel sandwich panels
